155M SFP SMF Bidi LC 80km 1490/1550nm optical fiber sfp transceiver module for cisco/huawei/ZTE/Viettle

Name: 155M SFP SMF Bidi LC 80km 14901550nm optical fiber sfp transceiver module for ciscohuaweiZTEViettle
Brand: UTOPTEK
Price: 1 USD

Quality 155M SFP SMF Bidi LC 80km 1490/1550nm optical fiber sfp transceiver module for cisco/huawei/ZTE/Viettle for sale

Brand Name : UTOPTEK

Model Number : SFP-FE-BX80-L45/54

Certification : CE FCC RoHs

Place of Origin : China

MOQ : 1 pair

Payment Terms : T/T, Western Union,Paypal, Alipay,Wechat etc.

Supply Ability : 2000pcs per week

Delivery Time : 1-2days

Packaging Details : 10pcs to one plastic plate

Transmission speed : 155Mbps

Fiber Type : Single-mode, Simplex LC

Distance : 80KM

DDM Function : Support

Power supply : 3.3V

Working Temperature : 0~70℃

Wavelength : Tx1490nm/Rx1550nm

Warranty : 3 years

Compatible : Cisco,Huawei,HP,H3C,Juniper,Extreme etc..

Contact Now

155Mb/s 80Km LC BiDi SFP Transceiver

Hot Pluggable, Single LC, +3.3V, Tx1490nm/Rx1550nm, FP-LD, Single-mode, DDM

Description:

UTOPTEK’s SFP-FE-BX80-L45/54 Transceivers are a high performance, cost effective module which have a single LC optics interface. They are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA) and Digital diagnostics functions are available via the 2-wire serial bus specified in SFF-8472. The receiver section uses a PIN receiver and the transmitter uses a 1490 nm DFB laser, up to 29dB link budge ensure this module SONET OC-3 / SDH STM -1 80km application.

Features:

Brand	UTOPTEK, OEM
Condition	100% New
Form Factor	SFP
Wavelength:	Tx1490nm/Rx1550nm
Distance	80KM
Data Rate (max)	155Mbps
Working Temperature (°C)	0°C~70°C
Storage Temperature (°C)	-40°C~+85°C
Relative Humidity	0~85%
Voltage Supply	3.3--5v
Connector	LC
Warranty	3 years
Compatible with	Cisco, Haiwei, HP etc.
Time of delivery	1-2 working days
Package	10 pcs/box

Applications:

100Base-BX Ethernet
SONET OC-3/SDH STM-1
1×Fiber Channel
Other Optical Links

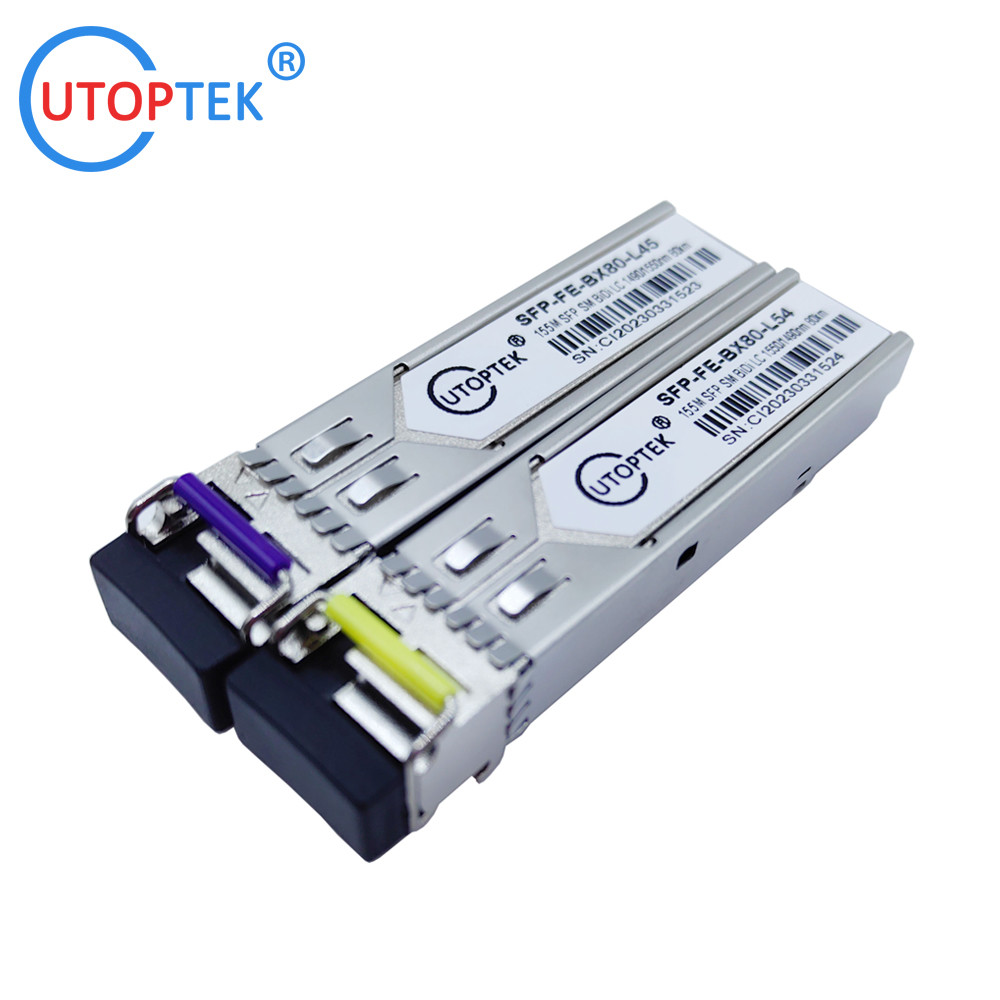

Prpducts Picture:

155M SFP SMF Bidi LC 80km 1490/1550nm optical fiber sfp transceiver module for cisco/huawei/ZTE/Viettle

Factory Show:

155M SFP SMF Bidi LC 80km 1490/1550nm optical fiber sfp transceiver module for cisco/huawei/ZTE/Viettle

Ordering Information:

155Mbps SFP Transceiver
Part No.	Data Rate	Form Factor	Distance	Wavelength	Transmitter	Receiver	Interface	Temp.
SFP-FE-SX-MM850	155Mbps	SFP	2km	850nm	VCSEL	PIN	LC	0-70℃
SFP-FE-SX-MM1310	155Mbps	SFP	2km	1310nm	FP	PIN	LC	0-70℃
SFP-FE-LX20-SM1310	155Mbps	SFP	20km	1310nm	FP	PIN	LC	0-70℃
SFP-FE-EX40-SM1310	155Mbps	SFP	40km	1310nm	DFB	PIN	LC	0-70℃
SFP-FE-ZX60-SM1550	155Mbps	SFP	60km	1550nm	DFB	PIN	LC	0-70℃
SFP-FE-ZX80-SM1550	155Mbps	SFP	80km	1550nm	DFB	PIN	LC	0-70℃
SFP-FE-ZX100-SM1550	155Mbps	SFP	100km	1550nm	DFB	PIN	LC	0-70℃
SFP-FE-ZX120-SM1550	155Mbps	SFP	120km	1550nm	DFB	PIN	LC	0-70℃
SFP-FE-ZX160-SM1550	155Mbps	SFP	160km	1550nm	DFB	PIN	LC	0-70℃
SFP-FE-BX20-L35	155Mbps	BiDi SFP	20km	Tx1310nm/Rx1550nm	FP	PIN	LC	0-70℃
SFP-FE-BX20-L53	155Mbps	BiDi SFP	20km	Tx1550nm/Rx1310nm	FP	PIN	LC	0-70℃
SFP-FE-BX40-L35	155Mbps	BiDi SFP	40km	Tx1310nm/Rx1550nm	FP	PIN	LC	0-70℃
SFP-FE-BX40-L53	155Mbps	BiDi SFP	40km	Tx1550nm/Rx1310nm	FP	PIN	LC	0-70℃
SFP-FE-BX60-L35	155Mbps	BiDi SFP	60km	Tx1490nm/Rx1550nm	DFB	PIN	LC	0-70℃
SFP-FE-BX60-L53	155Mbps	BiDi SFP	60km	Tx1550nm/Rx1490nm	DFB	PIN	LC	0-70℃
SFP-FE-BX80-L45	155Mbps	BiDi SFP	80km	Tx1490nm/Rx1550nm	DFB	PIN	LC	0-70℃
SFP-FE-BX80-L54	155Mbps	BiDi SFP	80km	Tx1550nm/Rx1490nm	DFB	PIN	LC	0-70℃
SFP-FE-BX100-L45	155Mbps	BiDi SFP	100km	Tx1490nm/Rx1550nm	DFB	PIN	LC	0-70℃
SFP-FE-BX100-L54	155Mbps	BiDi SFP	100km	Tx1550nm/Rx1490nm	DFB	PIN	LC	0-70℃
SFP-FE-BX120-L45	155Mbps	BiDi SFP	120km	Tx1490nm/Rx1550nm	DFB	PIN	LC	0-70℃
SFP-FE-BX120-L54	155Mbps	BiDi SFP	120km	Tx1550nm/Rx1490nm	DFB	PIN	LC	0-70℃
SFP-FE-BX160-L45	155Mbps	BiDi SFP	160km	Tx1490nm/Rx1550nm	DFB	PIN	LC	0-70℃
SFP-FE-BX160-L54	155Mbps	BiDi SFP	160km	Tx1550nm/Rx1490nm	DFB	PIN	LC	0-70℃

155M SFP SMF Bidi LC 80km 1490/1550nm optical fiber sfp transceiver module for cisco/huawei/ZTE/Viettle Images
