10G Base-T Electric RJ45 Copper SFP module Transceiver 30m compatible with cisco/Huawei/HP/Mikrotik/Ericsson/ZTE

Product Categories
Shenzhen UTOP Technology Co., Ltd.
Contact Now

10G Base-T Electric RJ45 Copper SFP module Transceiver 30m compatible with cisco/Huawei/HP/Mikrotik/Ericsson/ZTE

  • 1
  • 2

Brand Name : UTOPTEK

Model Number : UT-SFP-10G-T

Certification : CE FCC RoHs

Place of Origin : China

MOQ : 2pcs

Payment Terms : T/T, Western Union,Paypal, Alipay,Wechat etc.

Supply Ability : 2000pcs per week

Delivery Time : 1-2days

Packaging Details : 10pcs to one plastic plate

Transmission speed : 10Gbps

Interface : RJ-45

Distance : 30M

DDM Function : Support

Power supply : 3.3V

Working Temperature : 0~70℃

Ethernet Cable : Cat6a UTP

Warranty : 3 years

Compatible : Cisco,Huawei,HP,H3C,Juniper,Extreme etc..

Contact Now

10GBASE-T SFP+ Copper Transceiver

Hot Pluggable, 10Gb/s,Cat-6a UTP Cable, 30m

Description:

UTOPTEK’s UT-SFP-10G-T 10GBASE-T Copper Small Form Pluggable (SFP) transceivers are based on the SFP Multi Source Agreement (MSA). They are compatible with the 10Gbase-T / 5Gbase-T / 2.5Gbase-T / 1000base-T standards as specified in IEEE Std 802.3. UT-SFP-10G-T uses the SFP's RX_LOS pin for link indication. If pull up SFP's TX_DISABLE pin, PHY IC be reset.

Technical Specifications:

Brand UTOPTEK, OEM
Condition 100% New
Form Factor SFP+
UTP cable Cat6,Cat6a
Distance 30M
Data Rate (max) 10Gbps
Working Temperature (°C) 0°C~70°C

Storage Temperature (°C)

 -40°C~+85°C

Relative Humidity

 0~85%
Voltage Supply 3.3--5v
Connector RJ-45
Warranty 3 years
Compatible with Cisco, Haiwei, HP etc.
Time of delivery 1-2 working days
Package 10 pcs/box

Features:

  • ​Support 10Gbase-T / 5Gbase-T / 2.5Gbase-T / 1000base-T
  • Hot-pluggable SFP footprint
  • Compact RJ-45 connector assembly
  • RoHS compliant and lead-free
  • Single +3.3V power supply
  • 10 Gigabit Ethernet over Cat 6a cable
  • Ambient Operating temperature: 0°C to +65°C

Applications:

  • 10 Gigabit Ethernet over Cat 6 cable
  • Switch/Router to Switch/Router Link
  • High speed I/O for file severs

Cable Length:

Standard Cable Reach Host Port
10Gbase-T CAT6A 30m XFI
5Gbase-T/2.5Gbase-t CAT5E 50m 5GBase-R/2.5GBase-X
1000base-T CAT5E 100m 1000base-FX

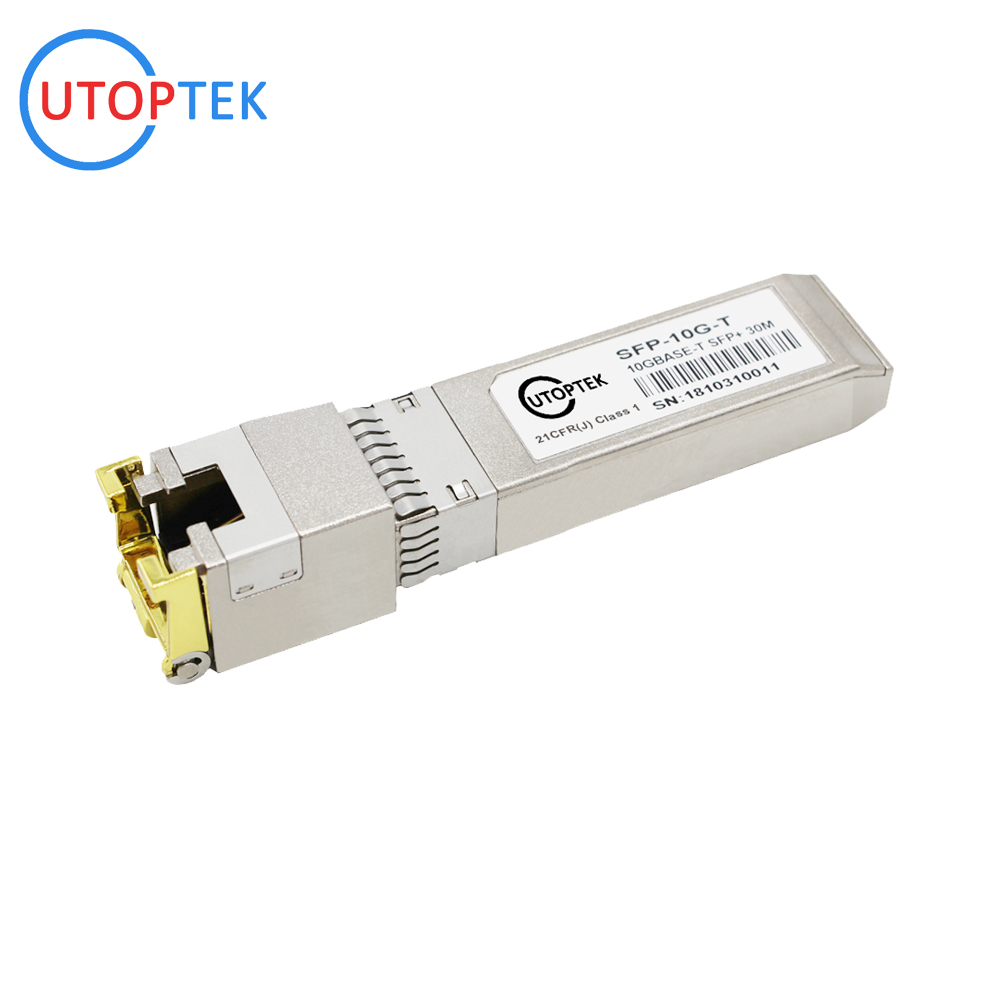

Prpducts Picture:

10G Base-T Electric RJ45 Copper SFP module Transceiver 30m compatible with cisco/Huawei/HP/Mikrotik/Ericsson/ZTE10G Base-T Electric RJ45 Copper SFP module Transceiver 30m compatible with cisco/Huawei/HP/Mikrotik/Ericsson/ZTE

Mechanical Dimensions:

10G Base-T Electric RJ45 Copper SFP module Transceiver 30m compatible with cisco/Huawei/HP/Mikrotik/Ericsson/ZTE

Factory show:

10G Base-T Electric RJ45 Copper SFP module Transceiver 30m compatible with cisco/Huawei/HP/Mikrotik/Ericsson/ZTE

10G Base-T Electric RJ45 Copper SFP module Transceiver 30m compatible with cisco/Huawei/HP/Mikrotik/Ericsson/ZTE

10G Base-T Electric RJ45 Copper SFP module Transceiver 30m compatible with cisco/Huawei/HP/Mikrotik/Ericsson/ZTE

Ordering Information:

Part No. Data Rate Form Factor Distance Wavelength Transmitter Receiver Interface Temp.
SFP-FE-T 100Mbps SFP 100m / / / RJ45 0-70℃
SFP-GE-T 1000Mbps SFP 100m / / / RJ45 0-70℃
SFP-10G-T 10000Mbps SFP 80m / / / RJ45 0-70℃
SFP-10G-T 10000Mbps SFP 30m / / / RJ45 0-70℃


Quality 10G Base-T Electric RJ45 Copper SFP module Transceiver 30m compatible with cisco/Huawei/HP/Mikrotik/Ericsson/ZTE for sale
